Hydraulic Compression Testing Equipment For 300kN Full Automatic Stone Cement Pressure Testing Machine

Dongguan Lixian Instrument Scientific Co.,LTD
Contact Now

Hydraulic Compression Testing Equipment For 300kN Full Automatic Stone Cement Pressure Testing Machine

Brand Name : lixian

Model Number : HZ-007

Certification : CE/ISO/ASTM/ROSH

Place of Origin : China

MOQ : 1

Price : 4800~8800$

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10 sets per month

Delivery Time : 7 days

Packaging Details : wood

Model : HZ-007

Test force measuring range : 4%-100%FS

Test Force showed the relative error : ≤indicating value±1%

Test Force Resolution : 0.01kN

Hydraulic pump rated pressure : 25MPa

Upper and lower bearing plate size : 155mm

Maximum Load : 300KN

Motor Power : 3 phase 0.75 kW

Usage : Cement Hydraulic Compression Strength Test Equipment

Contact Now

Compression Testing Equipment Two Column Type 100 KN Capacity For Hydraulic Concrete Building Materials

UTM Equipment summary:

HZ-007 The Compression testing machine is mainly used for brick, stone, cement, concrete and other building materials, compressive strength test.

UTM Hydraulic System:
The hydraulic oil tank driven by high-pressure pump into the motor oil, flows through the unidirectional valve, high pressure
filter, pressure valve, servo valve, into the cylinder.Computer control signals to the servo valve, Control direction and opening of the servo valve ,to control the flow into the cylinder,achieve constant test force control.


UTM Control system:
System including digital servo valve, high-precision sensors, controllers and software, high control precision and
reliability.Meet ISO, ASTM and other standards for cement, mortar, concrete and other materials testing requirements.


UTM System has the following functions:
* Closed-loop control with force;
* Can achieved constant loading rate or constant stress loading rate;

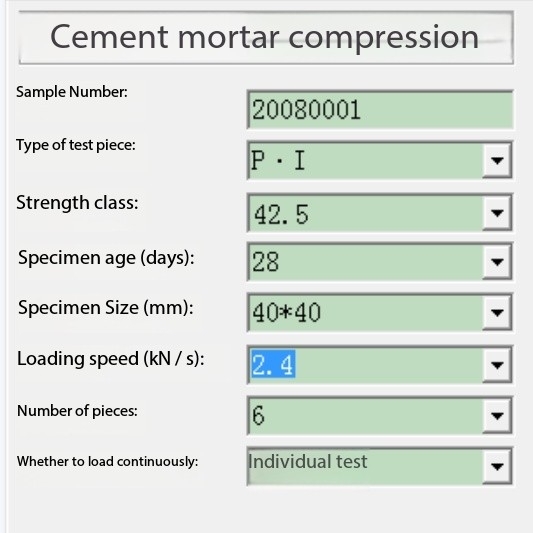

* Adopt computer for electronic measurement, automatic test;
* Computer automatically calculates the results and print reports.
* Test reports can be to self-design and exported to Excel


UTM Safety protection device:
When the test force more than 3% of the maximum test force, the overload protection, oil pump motor shut down.
UTM Specification
Model Number
HZ-007
Test force measuring range
4%-100%FS
Max load
300kN
Test Force showed the relative error
≤indicating value±1%
Test Force Resolution
0.01kN
Hydraulic pump rated pressure
25MPa
Loading rate
0.3KN/S~10KN/S
Error loading speed
±5%
Upper and lower bearing plate size
155mm
Piston stroke
60mm
Motor Power
3 phase 0.75 kW
Hydraulic Compression Testing Equipment For 300kN Full Automatic Stone Cement Pressure Testing Machine
Hydraulic Compression Testing Equipment For 300kN Full Automatic Stone Cement Pressure Testing Machine
Hydraulic Compression Testing Equipment For 300kN Full Automatic Stone Cement Pressure Testing Machine
