90 Degree Peel Strength Tester 10N 20N 50N 1 Grade 0.5 Grade Accuracy

Product Categories
Dongguan Lixian Instrument Scientific Co.,LTD
Contact Now

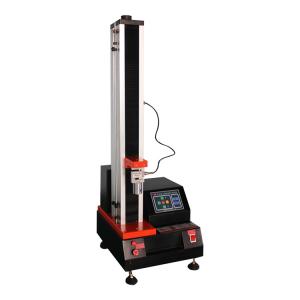

90 Degree Peel Strength Tester 10N 20N 50N 1 Grade 0.5 Grade Accuracy

  • 1
  • 2
  • 3

Brand Name : lixian

Model Number : HZ-1007E

Certification : CE/ISO/ASTM/ROSH

Place of Origin : China

MOQ : 1

Price : negotiate

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 7 days

Packaging Details : wood

Model : peel strength test equipment

Accuracy : 1grade / 0.5 grade

Maximum Load : 50N, 100N, 200N, 500N, 1KN (optional )

Effective tensile space : 300mm

Measuring accuracy : the value ±1% / the value ±0.5%

Power : Electronic

Usage : Universal Testing Machine,Tensile Testing Machine

Power supply : 220V 50Hz

Weight : About 160 Kg

Contact Now

1grade/0.5 grade 90 Degree Peel Strength Tester Hz-1007e

Peel Strength Tester Equipment summary:
It is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, This series of machine using single-space structure, operational space at the bottom, it is mainly applied to test non-metallic and metallic material which the load is less than 1KN, it has the parameters, such as stress, strain, control mode of displacement ,calculated max force, tensile strength, bending strength, compressive strength, elastic modulus, rate of elongation, yield strength and others..


Peel Strength Tester Main Function
This Series machine can be applied to test lots of materials in tensile,compression, tear, Adhesive Tape peel ( 90 degrees and 180 degrees) and other small mechanical test(within 1KN), such as rubber, tires, belt, shoes, plastic, film, acrylic, FRP, ABS, EVA, PU, aluminum-plastic pipe, composite materials, waterproof materials, fibers, textiles, wire and cable, paper, gold foil, ribbons, thread, spring, wood, medicine packaging materials, tapes etc.


Peel Strength Tester Corresponding standard:
GB/T 16491, GB/T 1040, GB/T 8808, ASTM D3759, ASTM D3330, ASTM D882, JIS K 6854, ASTM E4, ASTM D828, ASTM D1938, ASTM F88, ASTM F904, ISO 37, JIS P8113.

Peel Strength Tester Technical parameters:
Model Number
HZ-1007E
Accurate grade
1grade/0.5 grade
Certification
CE/ROHS/ISO
Material testing machine Maximum load
10N,20N,50N,100N,200N, 500N, 1KN,option
Effective measuring range
0.2%~100%/0.4%~100%
Measuring accuracy
the value ±1%/ the value ±0.5%
Tester resolution
Max load 1/200000, constant the resolution
Effective tensile stroke
300mm
Range of testing speed
0.01~500mm/min (special can be 0.01-1000mm/min)
Delivery
in stock and prompt ship
①. Single test, 10-point statistics manually and automatically calculate its average and break values;
②. Multi-unit automatically exchange such as kgf, Lbf, N, ton
③. Function of free to take point;
④. With multi-calibration function;
⑤. Auto printing function;
⑥. Using 24-bit AD acquisition, resolution 1 / 200000;
⑦. Decimal digits 0 to 4 arbitrary choice;
⑧. Starting up using password protection feature, which can effectively prevent the non-operators to use.
⑨. Ratio of Breakpoint from 0 ~ 99%, which the user can set according to different materials to stop the machine.
⑩. Overload protection function can be set, effectively preventing machine from overload;
Desktop Computer Type Universal Test Machine HZ-10...
90 Degree Peel Strength Tester 10N 20N 50N 1 Grade 0.5 Grade Accuracy
UTM Fixture
90 Degree Peel Strength Tester 10N 20N 50N 1 Grade 0.5 Grade Accuracy
Tensile machine grips is an indispensable part of the universal test machine. Different materials need different fixture, is also a significant factor whether the test can be carried out smoothly and the accuracy of the test results. Tension testing machine fixture is an indispensable part of electronic tension testing machine. Through the fixture clamping sample for the specimen after force, the size of the test force that the fixture can bear is a very significant index of the fixture. It determines the size of the fixture structure and the size of the labor intensity of the fixture operation. Tensile testing machine fixture in the structure of no fixed mode, according to different samples and test force size, in the structure of a great difference. The company provides tensile machine grips custom services to customers around the world and export UTM for 23 year.
